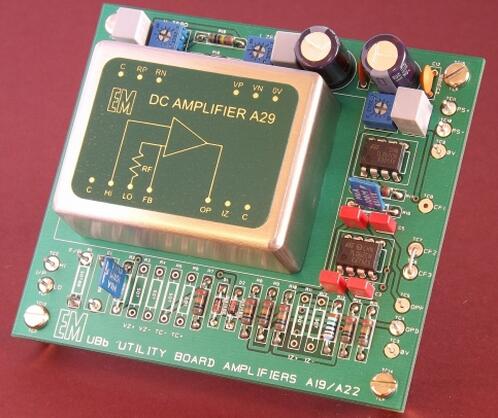

带有有源滤波的放大器通用板UBb
通用PCB板UBb为增益控制电阻、电源连接、输入端点、直接输出和滤波输出等预留了位置。滤波输出是通过极点为1Hz的有源滤波器输出，这样可以将调制信号最小化。
可以选择不同的滤波元件以改变滤波特性来满足应用要求。
当使用滤波输出时，有源滤波器将增大反馈回路的时间常数。时间常数这取决于反馈电阻和放大器电容。
输出信号也可以从直接输出引脚输出，而不经过有源滤波器，这样时间常数由反馈元件决定。
EM Utility Board UBb
The Utility PC Board UBb has positions for gain determining resistors, power supply connections, input terminals and direct and filtered outputs. The filtered output is taken via an active filter, which has a pole of 1Hz, to minimise the modulation component.
The Filter Characteristic may be varied by selecting the filter elements to suit the requirement.
When the filtered output is used, the active filter is additional to the feedback time constant set by the feedback resistor and capacitor for the amplifier.
The output may be taken from the direct output pin, thus by-passing the active filter, in which case the only filtering is the time constant set by the feedback components.
|
